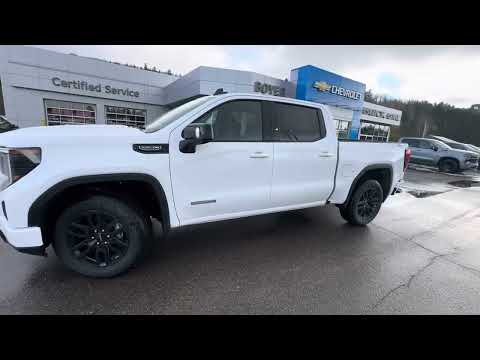

Name: 2026 GMC Sierra 1500 Crew Cab Short Box 4-Wheel Drive Elevation
Brand: GMC
SKU: 12-26115
Price: 85102 CAD
Availability: InStock

Vehicle Details

Body Style

Truck

Engine

5.3L 8Cyl

Exterior Colour

White

Transmission

Automatic

Drivetrain

4×4

Doors

VIN

3GTUUCED1TG180687

Stock #

12-26115

Condition

New

Trim Details

Crew Cab Short Box 4-Wheel Drive Elevation

• TurboMax 2.7L Turbo or 5.3L V8 • 4×4 with High-Capacity Suspension

• 10-Way Power Driver Seat • Heated Front Seats • Dual-Zone Climate

• 13.4” Touchscreen + 12.3” Digital Display • Remote Start • LED Fog & Tail Lamps

• Heated Steering Wheel • Apple CarPlay & Android Auto • Rear-Seat Storage Package

• Integrated Trailer Brake Controller • Hitch Guidance • 120V Interior & Bed Outlets

• Pro Safety Suite: Lane Keep Assist • Following Distance Indicator • Rear Seat Reminder

• Body-Colour Bumpers • Gloss-Black Grille • CornerStep Rear Bumper • EZ-Lift Tailgate

Packages & Options

Standard Equipment

Technical Specifications

Installed Packages

Transmission, 8-Speed Automatic, (Column Shifter) Electronically Controlled • MFC

with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking
Seats, Front Bucket • A50

with centre console (Includes (D07) centre console and (K4C) Wireless charging.
Elevation Premium Package • CXH

includes (PDQ) Preferred Package, (H0Y) Jet Black Leather interior, (SNR) Up-level Rear with Storage Package seat, (PED) Sierra Safety Plus Package, (RIA) All Weather Floormats, LPO and, (CGN) spray-on bedliner
Sunroof, Power • CF5
Lpo, Black Tubular Assist Steps, 6" Rectangular • RVQ

(dealer-installed)

No matches were found.

Options

Air Conditioning
Alloy Wheels
Backup Camera
Bluetooth Connection
Cruise Control
Heated Seats
Keyless Entry
Lane Assist
Navigation System
Power Seats
Power Windows
Remote Start
Satellite Radio
Smart Device Integration
Wi-Fi Hotspot

No matches were found.

Entertainment

AM/FM Stereo
Auxiliary Audio Input
Bluetooth Connection
MP3 Player
Navigation System
Smart Device Integration
Requires Subscription
Satellite Radio
Audio system feature, 6-speaker system
Steering Wheel Audio Controls
WiFi Hotspot

Exterior

Aluminum Wheels
Tires - Front All-Season
Tires - Rear All-Season
Wheel, 17" x 8" (43.2 cm x 20.3 cm) full-size, steel spare
Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door
Bumper, front, body-colour lower
Bumper, rear body-colour with corner steps
CornerStep, rear bumper
Grille (Body colour header with gloss black mesh grille insert bars.)
Daytime Running Lights
LED Headlights
Automatic Highbeams
Fog Lamps
Taillamps, LED LED signature taillight and Fade-on/Fade-off animation, incandescent stop, turn and reverse light
Heated Mirrors
Power Mirror(s)
Privacy Glass
Lamps, cargo area, cab mounted integrated with centre high mount stop lamp, with switch in bank on left side of steering wheel
LED Cargo Area Lighting located in cargo bed activated with switch on centre switch bank or key fob
Tailgate, standard
Tailgate, gate function manual with EZ Lift includes power lock and release, includes hitch area light
Door handles, body-colour

Interior

Split Bench Seat
Cloth Seats
Driver Adjustable Lumbar
Power Driver Seat
Heated Front Seat(s)
Pass-Through Rear Seat
Rear Bench Seat
Floor Mats
Adjustable Steering Wheel
Steering wheel, wrapped
Heated Steering Wheel
Driver Information Centre, enhanced, 12.3" diagonal reconfigurable multicolour digital display
GMC Premium information Display-13.4" diagonal Multicolour I touch screen
Compass, located in instrument cluster
Exterior Temperature Display, located in radio display
Brake lining wear indicator
Power Windows
Power Door Locks
Keyless Entry
Keyless Start
Remote Engine Start
Cruise Control
Security System
Steering column lock, electrical
Power outlet, interior power outlet, 120-volt (400 watts shared with (KC9) bed mounted power outlet)
Power outlet, bed mounted, 120-volt (400 watts shared with (KI4) interior power outlet)
Auxiliary Audio Input
MP3 Player
USB ports, (2) charge-only, rear
A/C
Climate Control
Multi-Zone A/C
Air vents, rear
Rear Defrost
Mirror, inside rearview, manual tilt
Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted

Mechanical

4 Cylinder Engine
Gasoline Fuel
Turbocharged
8-Speed A/T
A/T
GVWR, 7000 lbs. (3175 kg) (Requires Crew Cab 4WD or Double Cab 4WD model and (L3B) TurboMax engine. Requires Double Cab 4WD model with (L84) 5.3L EcoTec3 V8 engine without (NHT) Max Trailering Package.)
Keyless Start
Automatic Stop/Start
Locking/Limited Slip Differential
Transfer case, single speed, electronic Autotrac with push button control (4WD models only)
Suspension Package, High Capacity
Four Wheel Drive
Alternator, 220 amps (Included and only available with (L3B) 2.7L TurboMax engine, (LZ0) Duramax 3.0L Turbo-Diesel I6 engine or (NHT) Max Trailering Package.)
Battery, heavy-duty 730 cold-cranking amps/80 Amp-hr, maintenance-free with rundown protection and retained accessory power (Included and only available with (L84) 5.3L EcoTec3 V8 engine or (L3B) 2.7L TurboMax engine.)
Frame, fully-boxed, hydroformed front section
Trailer brake controller, integrated
Tow Hooks
Cargo tie downs (12), fixed, rated at 500 lbs per corner
Power Steering
4-Wheel Disc Brakes
ABS
Capless Fuel Fill
Exhaust, single outlet
Exhaust, aluminized stainless-steel muffler and tailpipe

Package

Tow Hitch
Automatic Highbeams
Front Collision Mitigation
Front Collision Warning
Lane Departure Warning
Lane Keeping Assist

Safety

Front Collision Mitigation
Front Collision Warning
Stability Control
Traction Control
Daytime Running Lights
Driver Air Bag
Front Head Air Bag
Front Side Air Bag
Passenger Air Bag
Passenger Air Bag Sensor
Rear Head Air Bag
Requires Subscription
Telematics
Hitch Guidance
Back-Up Camera
Following Distance Indicator (Included and only available with (PDI) GMC Pro Safety.)
Lane Departure Warning
Lane Keeping Assist
Seat Belt Adjustable Guide Loops, front row only
Rear Seat Belt Indicator
Buckle to Drive prevents vehicle from being shifted out of Park until driver seat belt is fastened; times out after 20 seconds and encourages seat belt use (Included and only available with (PDI) GMC Pro Safety.)
Tire Pressure Monitor
Rear Seat Reminder

No matches were found.

Summary

Vehicle Name

GMC Sierra 1500
Body Style

Crew Cab Pickup
Body Code

E63

Transmission

Drivetrain

Four Wheel Drive
Trans Order Code

MFC
Trans Type

8
Trans Description Cont.

Automatic
First Gear Ratio (:1)

4.56
Second Gear Ratio (:1)

2.97
Third Gear Ratio (:1)

2.08
Fourth Gear Ratio (:1)

1.69
Fifth Gear Ratio (:1)

1.27
Sixth Gear Ratio (:1)

1.00
Seventh Gear Ratio (:1)

0.85
Eighth Gear Ratio (:1)

0.65
Reverse Ratio (:1)

3.82
Transfer Case Model

Magna
Transfer Case Gear Ratio (:1), High

1.00

Interior dimensions

Passenger Capacity

5
Front Head Room (in)

43.03
Front Leg Room (in)

44.53
Front Shoulder Room (in)

66.02
Front Hip Room (in)

61.18
Second Head Room (in)

40.12
Second Leg Room (in)

43.4
Second Shoulder Room (in)

65.16
Second Hip Room (in)

60.24

Weight information

Gross Axle Wt Rating - Front (lbs)

3800
Gross Axle Wt Rating - Rear (lbs)

3800
Curb Weight - Front (lbs)

2846
Curb Weight - Rear (lbs)

1982
Gross Vehicle Weight Rating Cap (lbs)

7000
Gross Combined Wt Rating (lbs)

14500

Mileage

EnerGuide Estimate - City (L/100 km)

14.2
EnerGuide Estimate - Hwy (L/100 km)

12.9

Emissions

G/km Of CO2 Emissions

319

Trailering

Dead Weight Hitch - Max Trailer Wt. (lbs)

5000
Dead Weight Hitch - Max Tongue Wt. (lbs)

500
Wt Distributing Hitch - Max Trailer Wt. (lbs)

8800
Wt Distributing Hitch - Max Tongue Wt. (lbs)

880
Fifth Wheel Hitch - Max Trailer Wt. (lbs)

8200
Fifth Wheel Hitch - Max Tongue Wt. (lbs)

2050
Maximum Trailering Capacity (lbs)

12800

Engine

Engine Type

Turbocharged Gas I4
Fuel System

Direct Injection
Engine Order Code

L3B
Displacement

2.7L/166
SAE Net Horsepower @ RPM

310 @ 5600
SAE Net Torque @ RPM

430 @ 3000

Electrical

Cold Cranking Amps @ 0° F (Primary)

730
Maximum Alternator Capacity (amps)

220

Frame

Frame Type

Hydroformed

Suspension

Suspension Type - Front

Independent
Suspension Type - Rear

Solid Axle
Spring Capacity - Front (lbs)

3800
Spring Capacity - Rear (lbs)

3850
Axle Capacity - Front (lbs)

3800
Axle Capacity - Rear (lbs)

3800
Axle Ratio (:1) - Front

3.42
Axle Ratio (:1) - Rear

3.42
Stabilizer Bar Diameter - Front (in)

1.3

Tires

Front Tire Order Code

QAB
Rear Tire Order Code

QAB
Spare Tire Order Code

QAQ
Front Tire Size

275/60R20
Rear Tire Size

275/60R20
Spare Tire Size

255/80R17SL
Front Tire Capacity (lbs)

3800
Rear Tire Capacity (lbs)

3800
Revolutions/Mile @ 45 mph - Front (Rev/Mile)

N/A
Revolutions/Mile @ 45 mph - Rear (Rev/Mile)

N/A
Revolutions/Mile @ 45 mph - Spare (Rev/Mile)

N/A

Wheels

Front Wheel Size (in)

20 x 9
Rear Wheel Size (in)

20 x 9
Spare Wheel Size (in)

17 x 8
Front Wheel Material

Aluminum
Rear Wheel Material

Aluminum
Spare Wheel Material

Steel

Steering

Steering Type

Electric Rack & Pinion
Turning Diameter - Curb to Curb (ft)

46.9
Turning Diameter - Wall to Wall (ft)

N/A

Brakes

Brake Type

Pwr
Brake ABS System

4-Wheel
Disc - Front

Yes
Disc - Rear

Yes
Front Brake Rotor Diam x Thickness (in)

13.5 x 1.18
Rear Brake Rotor Diam x Thickness (in)

13.6 x 0.79

Fuel tank

Fuel Tank Capacity, Approx (L)

91

Exterior dimensions

Wheelbase (in)

147
Length, Overall (in)

231.92
Width, Max w/o mirrors (in)

81.24
Height, Overall (in)

75.51
Ground Clearance, Front (in)

8.08
Ground Clearance, Rear (in)

8.08

Cargo area dimensions

Cargo Box Length @ Floor (in)

69.92
Cargo Box Width @ Floor (in)

71.4
Cargo Box Width @ Wheelhousings (in)

50.63
Cargo Box (Area) Height (in)

22.4
Cargo Volume (ft³)

62.9

No matches were found.
